| Ikar Fall Protection Range |
|
Ikar Fall Arrest Blocks / Inertia Reels
|
|
|
|
Fall arrest blocks are also known as: IKAR blocks, fall
arrest devices, fall arresters, inertia blocks, inertia reels, retractable type fall arresters, retractables, retractable
lanyards, Sala blocks.
|
|

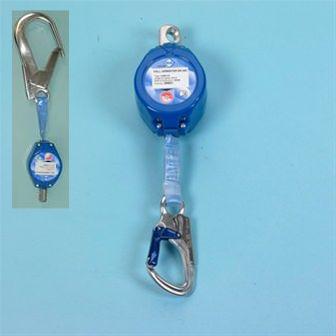

Fall Arrest Block with a 2.0m webbing lifeline in an aluminium
housing to EN360:2002
This aluminium housed fall arrest block is a sturdy, low
maintenance device fitted with a webbing lifeline, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 240 x 84 x 61 mm.
The weight of the block is: 0.8 Kg.
|
|
|
|
Fall Arrest Block with a 3.5m webbing lifeline in an aluminium
housing to EN360:2002
This aluminium housed fall arrest block is a sturdy, low
maintenance device fitted with a webbing lifeline, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 315 x 123
x 75 mm.
The weight of the block is: 1.4 Kg.
|
|
|
|
Fall Arrest Block with a 3.5m webbing lifeline in a plastic
housing to EN360:2002
This plastic housed fall arrest block is a sturdy, low
maintenance device fitted with a webbing lifeline, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 326 x 104
x 78 mm.
The weight of the block is: 1.2 Kg
|
|
|
|

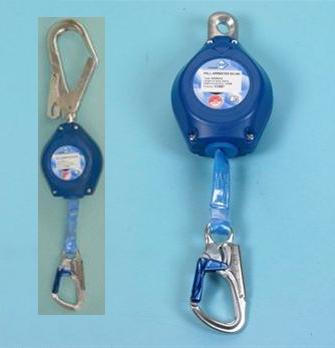

Fall Arrest Block with a 5.5m webbing lifeline in a plastic
housing to EN360:2002
This plastic housed fall arrest block is a sturdy, low
maintenance device fitted with a webbing lifeline, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in
this fall arrest block has been tested in a simulated fall over an edge and passed the German draft amendment EN360.
However, not all "edges" will react in the same way as the tested steel edge, so when using this fall arrest block, every
effort must be made to ensure that in the event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 300 x 130
x 78 mm.
The weight of the block is: 1.5 Kg.
|
|
|
|
Fall Arrest Block with a 7.0m webbing lifeline in a plastic
housing to EN360:2002
This plastic housed fall arrest block is a sturdy, low
maintenance device fitted with a webbing lifeline, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 300 x 145
x 80 mm.
The weight of the block is: 1.8 Kg.
|
|
|
|

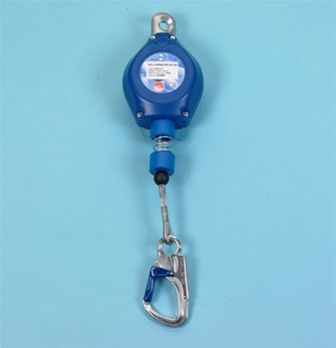

Fall Arrest Block with a 4.5m steelrope lifeline in a plastic
housing to EN360:2002
This plastic housed fall arrest block is a sturdy, low
maintenance device fitted with a steelrope, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in this fall arrest block has been tested in a simulated fall over an
edge and passed the German draft amendment EN360. However, not all "edges" will react in the same way as the tested
steel edge, so when using this fall arrest block, every effort must be made to ensure that in the event of an arrested fall,
the lifeline does not pass over an edge.
The dimensions of this block are: 400 x 130 x 78
mm.
The weight of the block is: 2.1 Kg.
|
|
|
|

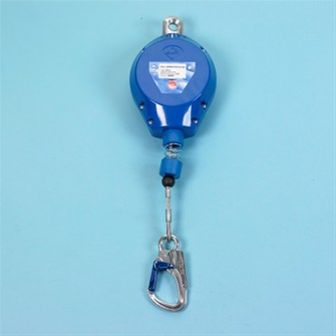

Fall Arrest Block with a 9.0m Steelrope lifeline in an
aluminium housing to EN360:2002
This aluminium housed fall arrest block is a sturdy, low
maintenance device fitted with a steelrope lifeline, terminated with an aluminium double action hook. The attachment anchorage point on the fall arrest block is a cast aluminium swivel eye ø16mm, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 455 x
160 x 85 mm.
The weight of the block is: 3.7 Kg.
|
|
|
|

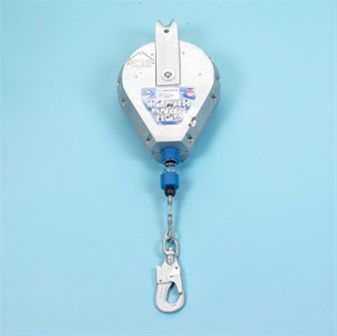

Fall Arrest Block with a 12.0m steelrope lifeline in an
aluminium housing to EN360:2002
This aluminium
housed fall arrest block is a sturdy, low maintenance device fitted with a steelrope lifeline, terminated with a
steel double action hook. The attachment anchorage point on the fall arrest block is an open steel handle,
suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 450 x 195
x 90 mm.
The weight of the block is: 5.9 Kg.
|
|
|
|
Fall Arrest Block with a 18.0m steelrope lifeline in an
aluminium housing to EN360:2002
This aluminium housed fall arrest block is a sturdy, low
maintenance device fitted with a steelrope lifeline, terminated with a steel double action hook. The attachment
anchorage point on the fall arrest block is an open steel handle, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 550 x 240
x 100 mm.
The weight of the block is: 9.5 Kg.
|
|
|
|
Fall Arrest Block with a 24.0m steelrope lifeline in an
aluminium housing to EN360:2002
This aluminium housed fall arrest block is a sturdy, low
maintenance device fitted with a steelrope lifeline, terminated with a steel double action hook. The attachment
anchorage point on the fall arrest block is an open steel handle, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.
The lifeline in this fall arrest block has been tested
in a simulated fall over an edge and passed the German draft amendment EN360. However, not all "edges" will react in
the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the
event of an arrested fall, the lifeline does not pass over an edge.
The dimensions of this block are: 630 x 275
x 110 mm.
The weight of the block is: 13.5 Kg.
|
|
It should be noted that this IKAR Fall Arrest Block is
CE marked against EN360 under the PPE Directive and should be treated as such and NOT as lifting equipment.
Service and inspection requirements for this fall arrest block is
that it should be inspected and function checked by a trained competent person on a regular basis as deemed by a risk assessment
for the environment in which it is used and frequency of use, but at least every 6 months. Additionally, every
12 months it should be returned to Liftsafe Solutions Ltd, for a Full Service, when it will be tested under workshop
conditions and re-certificated as laid down by the manufacturer.
|
