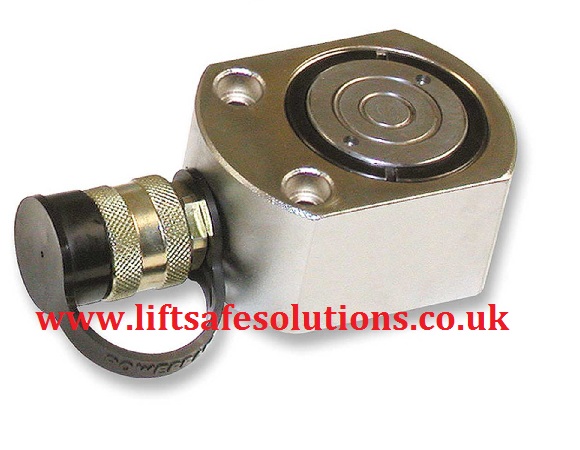

Hydraulic Pad Jack Cylinders

Pad jacks are shortest form of hydraulic cylinder available their extremely low profile means they can fit into the smallest of gaps. Pad jacks can also be used as extensions by increasing the stroke by stacking on other cylinders.

  • Capacity Range: 1 tonne to 150 tonne

  • Max Pressure 10`000PSI (700 BAR)

  • Stroke Range: 6mm to 17mm

  • Single Acting Spring Assisted Return

  • Piston Hard Chromed

  • Inside Re-Polished

  • Outside Blasted & Chromed

Pad Jacks SLS

Product
Code
 SWL
(tonne)
Stroke
(mm)
Area of
Force
(cm2)
Oil
Capacity
(cm2)
 Weight
(kgs)
Price Each
SLS50 566.54.5 1.0£128.70
SLS100 101214.518 1.4£178.38
SLS200 201228.734 3.1£251.77
SLS300 301342.154 4.5£289.03
SLS500 451662.1102 6.8£407.70
SLS750 7516102.6166 11.3£599.95
SLS1000 90 16 126.7 212 14.5£817.42
SLS1500 150 17 198.1 342 26.3£1124.51

Product
Code
SWL
(tonne)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)

 H
(mm)
 G
(mm)
 K
(mm)
 J
(mm)
 H1
(mm)
 L
(mm)
 M
(mm)
SLS505333928.558x4131 25.4 5.5 16 9.5 1 20 22
SLS1001042543682x5544 38 7.5 19 11 1 28.5 34
SLS20020516349.3101x7660 50.8 10 19 15 1 39 39
SLS30030587152.3117x9573 63.5 10 19 16 2 47 44
SLS50045668266.5140x11490 70 11 19 19 2 55 55
SLS75075799576.2165x140115 82.5 13.5 19 20.5 2 69 66
SLS100090 85 10176.2 178x153130 92 13.5 19 20.5 2 76 74
SLS1500150 100 116117216x190 160 115 13.5 19 23 2 95 82

Order Online

Model
Quantity :

Download Pad Jack SLS PDF

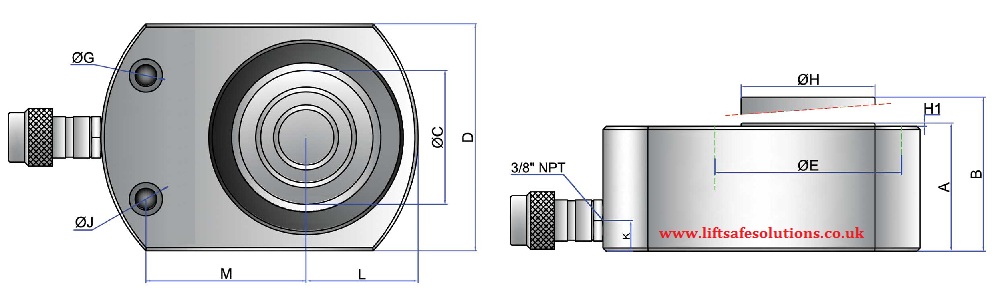

Pad Jacks SLS Dimensions Drawing

Enter content here

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.

Not all the products available are on our web site -If you dont see the product you require, let our sales team find it for you by emailing them now! sales@liftsafesolutions.co.uk
