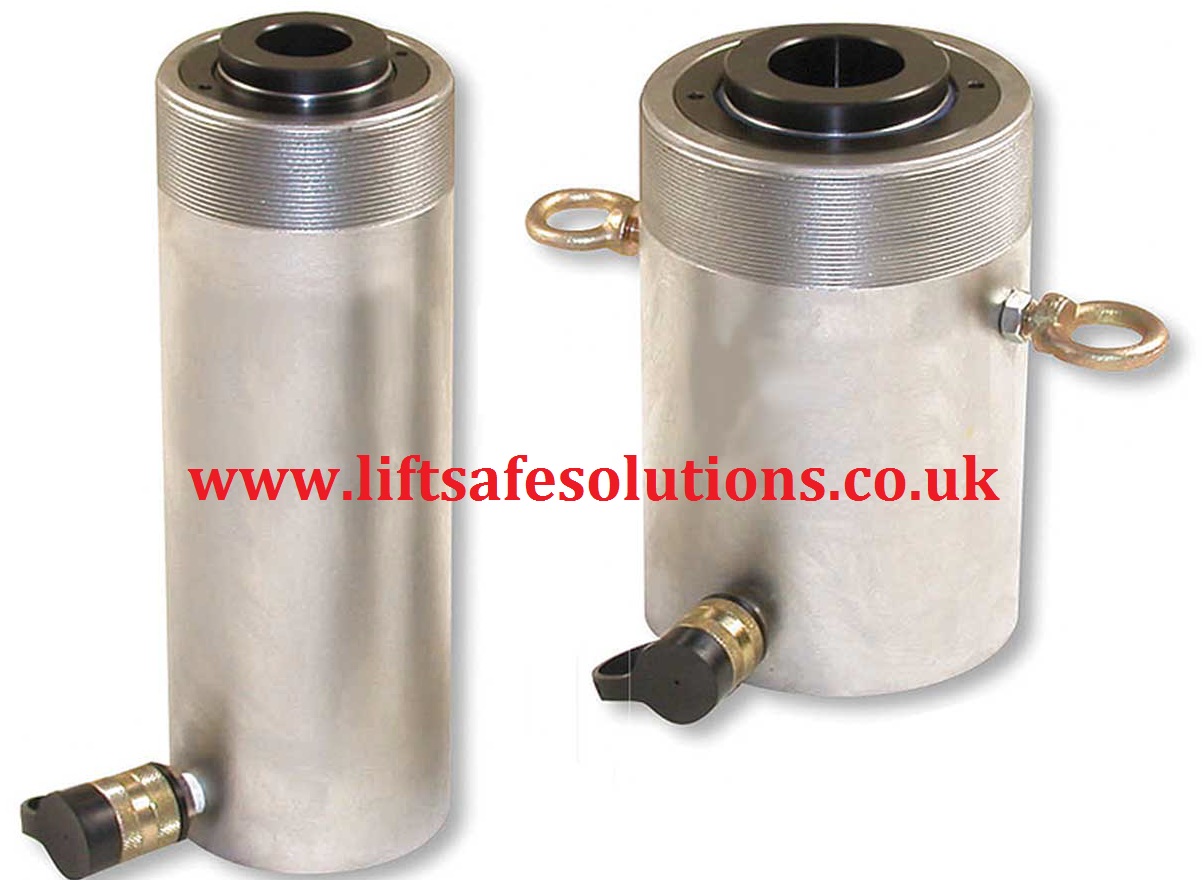

Hydraulic Hollow Centre Cylinders

The hydraulic hollow cylinder allows for both pull and push forces which can provide versatility in many maintenance, testing and tensioning applications.

  • Capacity Range: 13 tonne to 95 tonne

  • Hollow Centre Series

  • Max Pressure 10`000PSI (700 BAR)

  • Stroke Range: 8mm to 95mm

  • Single Acting Spring Assisted Return

  • Piston Hard Chromed

  • Inside Re-Polished

  • Outside Blasted & Chromed

SHS Hollow Cylinders

Product
Code
 SWL
(tonne)
Stroke
(mm)
Area of
Force
(cm2)
Oil
Capacity
(cm2)
A
(mm)
B
(mm)
 E
ø (mm)
 Weight
(kgs)
Price Each
SHS12013817.91860 6854.1 1.5£232.58
SHS121134217.99612116354.13£327.41
SHS123137617.917518025654.14.2£395.16
SHS202205230.7230162214757.5£480.96
SHS2062015230.76713104627513.5£736.12
SHS3023068.546.6435182250.590 11£541.95
SHS3063015846.61005332490 9020.4£973.22
 SHS603 60 76 82.3 932247.5323.5125 26.4£1115.48
SHS6066015382.31876326.5479.512534£1427.09
 SHS1003 95 83 133 177425433716550.1£1899.10

Product
Code
S
(mm)
D
(mm)

 H1
(mm)
 K
(mm)
 W
ø (mm)
 H
(mm)
 O
ø (un)
 P
(mm)
 N
(mm)
Z
(mm)
V
ø (UNC)
C
(mm)
R

ø (mm)
Centre
Hole

SHS1203573-11.52-3/4" - 16- 3/4"-161630 95/16"-18 50.819.5
SHS1213573-192-3/4" - 16- 3/4"-161630 - -19.5
SHS1233573-192-3/4" - 16-3/4"-161630 12.75/16"-18 50.819.5
SHS20254.91009193-7/8" - 12541-9/16"-161938 9.4  3/8"-16 82.627
SHS20654.91009193-7/8" - 12541-9/16"-161938 9.4 3/8"-16  82.627
SHS3026511410234-1/2" - 12631-7/8"-162242 14 3/8"-16 9236
SHS3066511410254-1/2" - 12631-7/8"-162242 14 3/8"-16 9236
SHS60390158.612.5326-1/4" - 12892-3/4"-162250 14 1/2"-1213054
 SHS60690158.612.5326-1/4" - 12892-3/4"-162250 14 1/2"-1213054
 SHS1003125  21312 38 8-3/8" - 12 1254"-16 28 60 195/8"-1117879

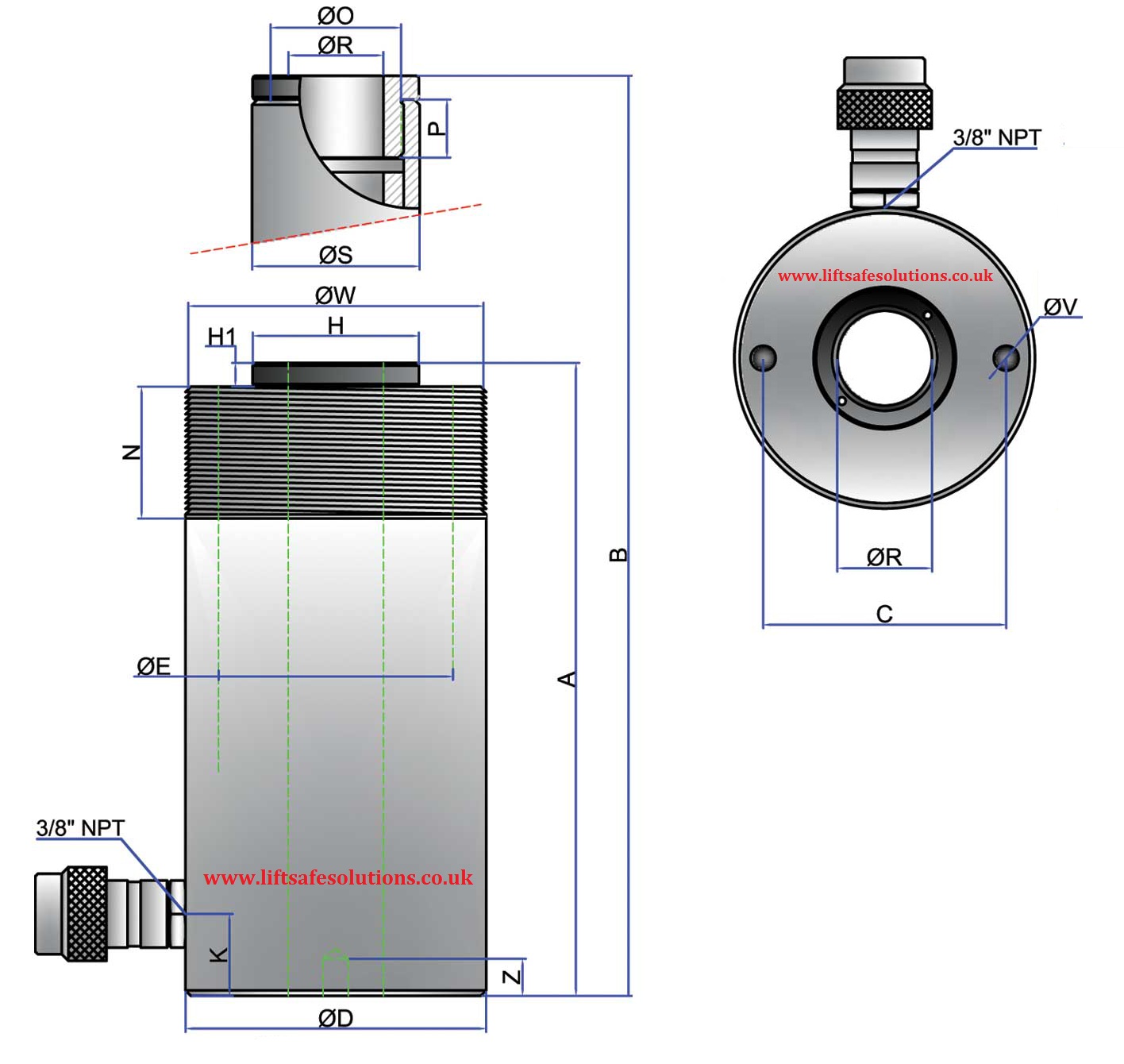

Hollow Cylinders SHS Dimensions Drawing

Order Online

Model
Quantity :

Download Hollow Cylinder SHS PDF

Enter content here

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.
