The
MK4 and MK5 Heavy Duty Access Platform is the ultimate solution for occassional overhead access and mainteneance
work. Offering comfort and safety when working overhead and ultimate comfort offered with the MK5 larger platform working
area. Manufactured from 50mm hollow steel section makes the heavy duty access platform robust and hardwearing. The heavy duty
range are considerably heavier than our other models and is ideally suited to the most demanding uses.
|
|

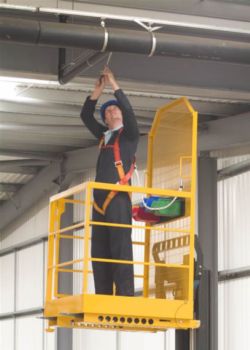

Heavy Duty MK4 Acess Platform
The MK4 Access Platform for frequent, demanding
overhead work.
- Heavy duty constructions
- compact one man design
- Self closing and latcheing gate
- Set of plastic trays supplied
- Amlock security system lock platform behind heels
of forks
- Conforms to PM28
- Max Capacity - 2 persons plus tools, 350kg
- Unladen Weight - 105kg
- Colour - Safety Yellow
- Cage Size (mm) - (W) 1000 x (D) 1000 x (H) 2085
- Fork guide size - 180 x 75 @ 660mm fork centres
- Minimum truck rating - 1000kg @600mm load centre
The amlock security system can be adjusted
to fit various fork sizes and when locked behind the heel of the folk, prevents the platform from sliding off the forks. The
tunne guides provide absolute stability for the platform once the folks are located into them.
The wire mesh at the rear of the platform provides protection
from trapping, crushing and shearing points of the fork truck. An anchorage rail is included to allow a safety harness to
be attached and the two safety rails offer additional protection. The lourve panel at the rear of the platform will accept
the optional plastic bins while the metal tool tray can be fit to the front of side.
|
Free Carriage (UK Mainland Only)
7-10 Working Days Delivery
|
|
|
Heavy Duty MK5 Acess Platform
Demand the best for overhead work.The MK5 Access Platform comfortably holds two poeple and their tools with its hardwaring and robust design.
- Heavy duty constructions
- Self closing and latcheing gate
- Set of plastic trays supplied
- Amlock security system lock platform behind heels
of forks
- Conforms to PM28
- Max Capacity - 2 persons plus tools, 300kg on 1000kg truck
- Max Capacity - 2 persons plus tools, 800kg on 2000kg truck
- Unladen Weight - 105kg
- Colour - Safety Yellow
- Cage Size (mm) - (W) 1250 x (D) 1250 x (H) 2200
- Fork guide size - 180 x 75 @ 660mm fork centres
- Minimum truck rating - 1000kg @600mm load centre
The amlock security system can be adjusted
to fit various fork sizes and when locked behind the heel of the folk, prevents the platform from sliding off the forks. The
tunne guides provide absolute stability for the platform once the folks are located into them.
The wire mesh at the rear of the platform provides protection
from trapping, crushing and shearing points of the fork truck. An anchorage rail is included to allow a safety harness to
be attached and the two safety rails offer additional protection. The lourve panel at the rear of the platform will accept
the optional plastic bins while the metal tool tray can be fit to the front of side.
|
|
| |
Optional Accessories
- Removalbe Overhead Guard
- Metal Tool Tray
- Range of Platic Bins
- Castore (these must be ordered at the same time as the Access Platform as they can`t be fitted afterwards)
|
|
|
|
RidgeGear RGHK5 IPAF Kit
This complete harness safety Kit combines the famous RGH2 front & rear "D" harness and a RGL12 adjustable restraint
lanyard supplied in a tough plastic storage case. The case provides protection when not using the equipment.
The kit is designed to give maximum protection against vertical ejection from boom type hydraulic work platforms.
Data
|
Special Feature |
EN361 & EN354 |
|
Web Material |
45mm Water repellent polyester |
|
Features |
Front & Rear attachment points |
|
Special Feature |
IPAF Approved |
|
|
