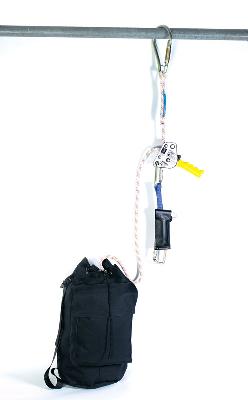

| RGR4 Rescue System |
|
The RGR 4 Height Rescue System is a simple yet very effective method of reaching
a person who has experienced a fall and is in need of quick recovery. The operating handle is very easy to use and ensures
controlled descent. The handle also has a reverse locking mechanism to prevent accidental rapid descent.
The rescuer
is able to free the person and both persons are able to descend safely and efficiently to an area of safety. The kernmantel
rope as stocked in 20,30 & 60mtr lengths, but can be supplied to any length in order to suit the needs of the user.
The
integral safety knife is provided as standard so that the lanyard of the user can be cut quickly and safely. Due to its design,
it is not possible to accidentally cut the rescue rope (see picture).
PROPER TRAINING BY A COMPETENT PERSON IN THE
USE OF THIS EQUIPMENT IS ESSENTIAL
|
Accredited to: |
Draft standard 95/501316 |
|
Material: |
Steel descender, 11mm nylon kernmantel rope, 60mm scaffold hook |
|
Weight: |
0.55kg (descender only) |
|
SWL: |
200kgs, for 1 or 2 persons |
|
Features: |
Easy to operate descender handle, safety strop, safety knife, carry holdall |
|
|
|
|

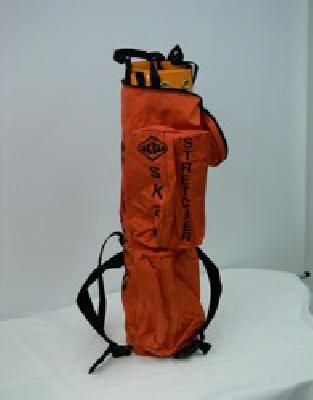

| RGR11 Rescue Stretcher |
|
The RGR11 stretcher rescue system is a quick and easy method
to ascend or descend to a position of safety. Must never be used where there is a risk of shock loading.
|
|
|
|

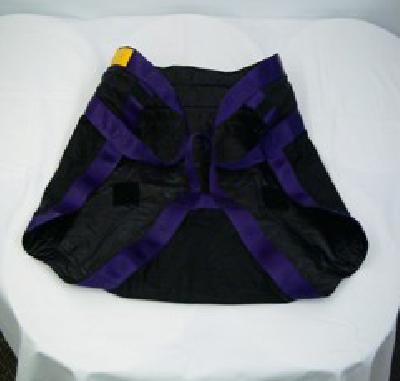

| RGH6 Rescue Triangle |
|
RGH6 Rescue Triangle
The RGH6 rescue triangle is a quick and easy method to ascend or descend to a position
of safety. Must never be used where there is a risk of shock loading.
|
Weight: |
0.4 kg |
|
Size mm: |
900 x 800mm |
|
|
|
|
RGH4 Front Rear
& Side D Harness
The RGH4 includes all of the features of the RGH1-3 harnesses, (see data sheets).
This comfortable harness is designed for operatives who spend a lot of time working at height and in exposed areas. The RGH4
is a “multi task” harness and will allow operatives to access almost any area in safety using a combination of
the RidgeGear products available. As with the RGH2, this harness is suitable for use in performing rescues from height using
the RGR4 rope rescue kit.
As with the RGA3, the wide belt fitted to the RGH4 is comfortable and provides lumbar support
to the operative. The belt is also fitted with three gear loops for carrying tools leaving the hands free thus maintaining
the required three points of contact when climbing. All of the features, combined with a good load bearing capacity, make
this harness the ideal choice for the professional.
The harness is fully adjustable and is fitted with rip stitch
indicators. The ring connection between the chest & the shoulder straps, ensure no stress loading when force is applied
the front dee ring.
Accredited to: EN 361 & EN 358
Web Material: 45mm water repellent polyester
Fittings: High tensile steel alloy
Weight: 1.75kg
Features: Front, rear & side attachment points, rip
stitch indicators, gear loops
|
|
