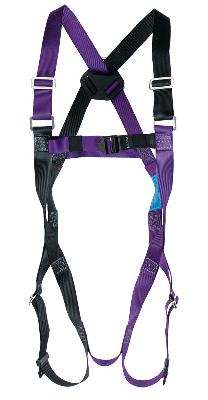

RGH1 Rear D Safety
Harness
The RGH1 harness is a basic access harness fitted with a rear dee only. This harness
is used primarily with a fall arrest lanyard (I.e. RGL1), to provide an operative with basic fall protection. When used in
conjunction with a ” twin leg lanyard” (RGL3), the harness can be used for tower climbing, scaffold and general
steel erecting, as the twin leg lanyard would provide continuous attachment through “double clipping”.
As
with all of the RidgeGear harnesses, the RGH1 is suitable for use with fall arrest blocks, however we recommend the addition
of the RGL4 extension strop to facilitate easy connection.
The harness is fully adjustable and is fitted with rip stitch
indicators.
Accredited to: EN 361
Web Material: 45mm water repellent polyester
Fittings: High tensile steel alloy
Weight: 0.95kg
Features: Rear D attachment, rip stitch indicators
|
|
|
|

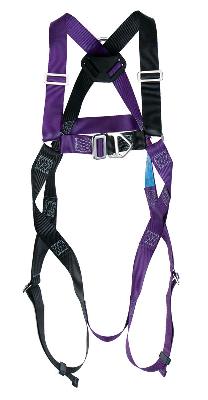

RGH2 Front & Rear D Harness
The RGH2 harness is the “ workhorse” of the industry.
The harness is fitted with a rear dee and a chest mounted front dee. This harness can be used similar to the RGH1 (see data
sheet), but has the added feature of the front dee ring to extend the working capability of the harness. Utilizing the front
dee, the harness can be fitted with a rope and grab system (RGA12) for vertical fall protection when an operative is making
repeated ascents or similarly, when restraint/work-positioning is needed in either the vertical or horizontal plane.
A
variety of other devices can be used with the front dee ring, but please check for suitability.
The harness is fully
adjustable and is fitted with rip stitch indicators. The ring connection between the chest & the shoulder straps, ensure
no stress loading when force is applied the front dee ring.
Accredited to: EN 361
Web Material: 45mm water repellent polyester
Fittings: High tensile steel alloy
Weight: 1.15kg
Features: Rear & front attachment point,
rip stitch indicators
|
|
|
|
RGH4 Front Rear
& Side D Harness
The RGH4 includes all of the features of the RGH1-3 harnesses, (see data sheets).
This comfortable harness is designed for operatives who spend a lot of time working at height and in exposed areas. The RGH4
is a “multi task” harness and will allow operatives to access almost any area in safety using a combination of
the RidgeGear products available. As with the RGH2, this harness is suitable for use in performing rescues from height using
the RGR4 rope rescue kit.
As with the RGA3, the wide belt fitted to the RGH4 is comfortable and provides lumbar support
to the operative. The belt is also fitted with three gear loops for carrying tools leaving the hands free thus maintaining
the required three points of contact when climbing. All of the features, combined with a good load bearing capacity, make
this harness the ideal choice for the professional.
The harness is fully adjustable and is fitted with rip stitch
indicators. The ring connection between the chest & the shoulder straps, ensure no stress loading when force is applied
the front dee ring.
Accredited to: EN 361 & EN 358
Web Material: 45mm water repellent polyester
Fittings: High tensile steel alloy
Weight: 1.75kg
Features: Front, rear & side attachment points, rip
stitch indicators, gear loops
|
|
|
|

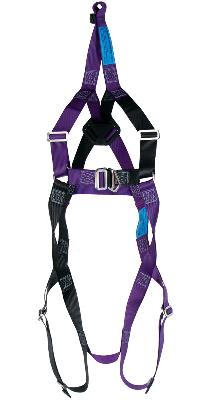

RGH5 Front &
Rear D Rescue Harness
The RGH5 is designed for use as a
confined access harness. The front and rear attachment points can be used as standard fall arrest points and the rescue strap
can be used for lifting and lowering. When used, the rescue strap keeps the operative in a near vertical position, which is
preferred when recovering an unconscious casualty.
This harness is used throughout the industry in conjunction with
a tripod (RGR1) and a winch unit to access confined spaces, vertical shafts, sewers and silos. As with all of the RidgeGear
harnesses, the RGH5 is suitable for use with fall arrest/recovery blocks.
The harness is fully adjustable and is fitted
with rip stitch indicators.
Accredited to: EN 361
& EN 1497
Web Material: 45mm water repellent polyester
Fittings: High tensile steel alloy
Weight: 1.45kg
Features: Rear
& front attachment point, Rescue strap, rip stitch indicators
|
|
|
|

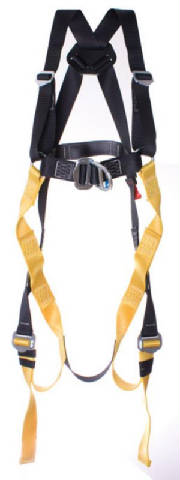

RGH9 Front
& Rear D Elasticated Harness
With the introduction of elasticated webbing on the leg & lower chest straps,
the RGH9 harness provides additional comfort and support during use. Based on the RGH2, this RGH9 is also fitted with a rear
dee and a chest mounted front dee. This harness can be used similar to the RGH1 (see data sheet), but has the added feature
of the front dee ring to extend the working capability of the harness. Utilizing the front dee, the harness can be fitted
with a rope and grab system (RGA12) for vertical fall protection when an operative is making repeated ascents or similarly,
when restraint/work-positioning is needed in either the vertical or horizontal plane.
A variety of other devices can
be used with the front dee ring, but please check for suitability.
In addition to the elasticated feature, the harness
is fully adjustable and fitted with rip stitch indicators. The ring connection between the chest & the shoulder straps,
ensure no stress loading when force is applied to the front dee ring.
Accredited to: EN 361
Web Material: 45mm water repellent polyester. Nylon/polyester elasticated
leg straps
Fittings: High tensile steel alloy
Weight: 1.25kg
Features: Rear & front attachment point, rip stitch
indicators
|
|
